▸ MINI FORESTRY FORWARDER
BUILT INTHE FOREST.FOR THE FOREST.
A 1500 mm wide, 5 meter long machine, light enough to tow behind a van, strong enough to forward storm-fallen trees all day. Designed by foresters. Built in Finland.
WIDTH
1500 MM
LENGTH
5000 MM
DRIVE
8 × 8
FROM
€34,900
▸ MINI FORESTRY FORWARDER
BUILT INTHE FOREST.FOR THE FOREST.
A 1500 mm wide, 5 meter long machine, light enough to tow behind a van, strong enough to forward storm-fallen trees all day. Designed by foresters. Built in Finland.
WIDTH
1500 MM
LENGTH
5000 MM
DRIVE
8 × 8
FROM
€34,900
PORTTIVUORI OY WORKSHOP — HELSINKI, FI
MM WIDE
Narrow enough for forest trails
MM LONG
Compact, towable machine
DRIVE
All-wheel hydrostatic
KG PAYLOAD
Storm-fall capacity

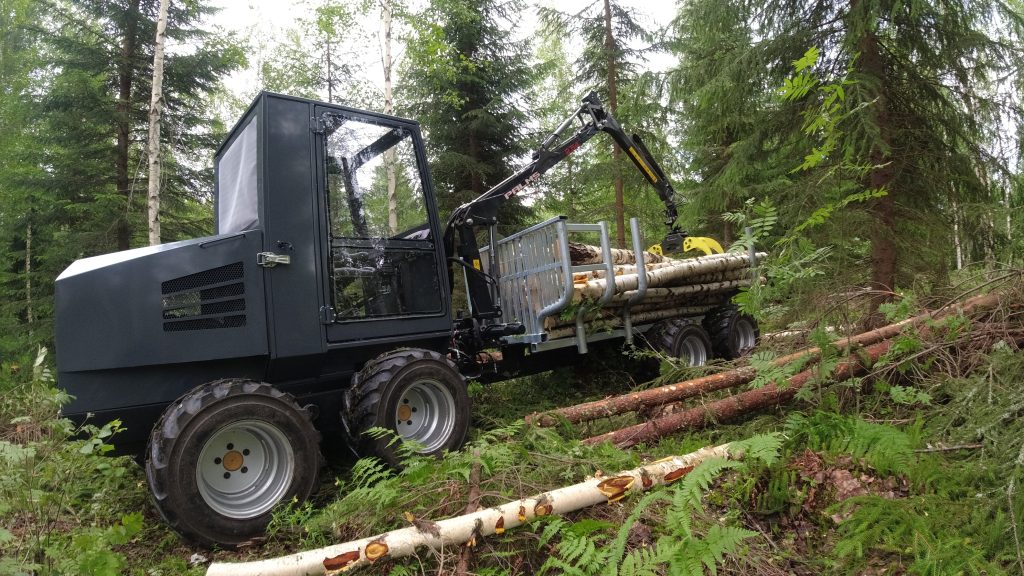

THE THREE MACHINES

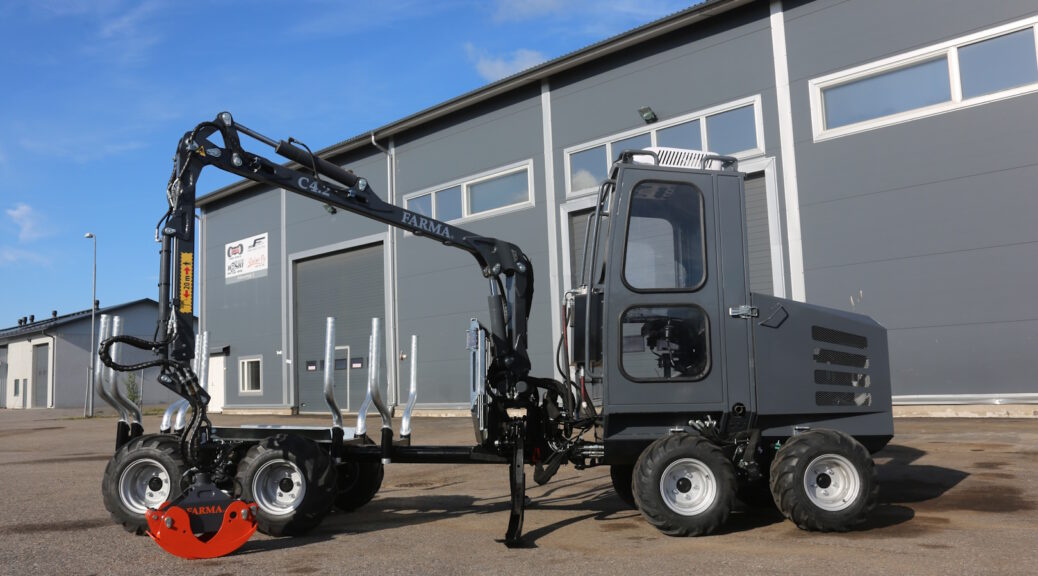

Three sizes. Same philosophy: simple, reliable, purpose-fit forestry machines built in Helsinki.
WHY LOGBULLET
Built in the woods

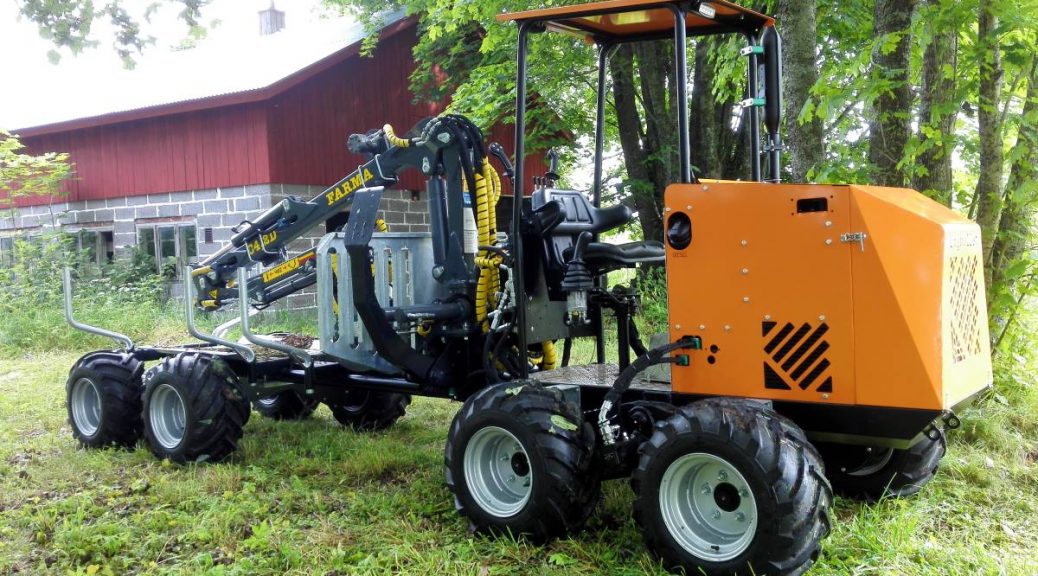

The Logbullet is at home on forest trails and in the woods forwarding logs and forestry equipment. Logbullet runs forward and backward with light jogging pace. The machine load space can be extended for longer trees with the optional extension. Cab and trailer swing freely and independently — an important safety factor. When wagon is accidentally overturned, cab does not crash with it. Logbullet is narrow enough to travel between trees in the forest. When you are collecting trees that have fallen due to strong wind, you do not have to cut extra trees down. Ground clearance of 400 mm — not just in a small area in the middle, but as a large area to facilitate driving over stumps and small stones.
READ MORE →
User friendly

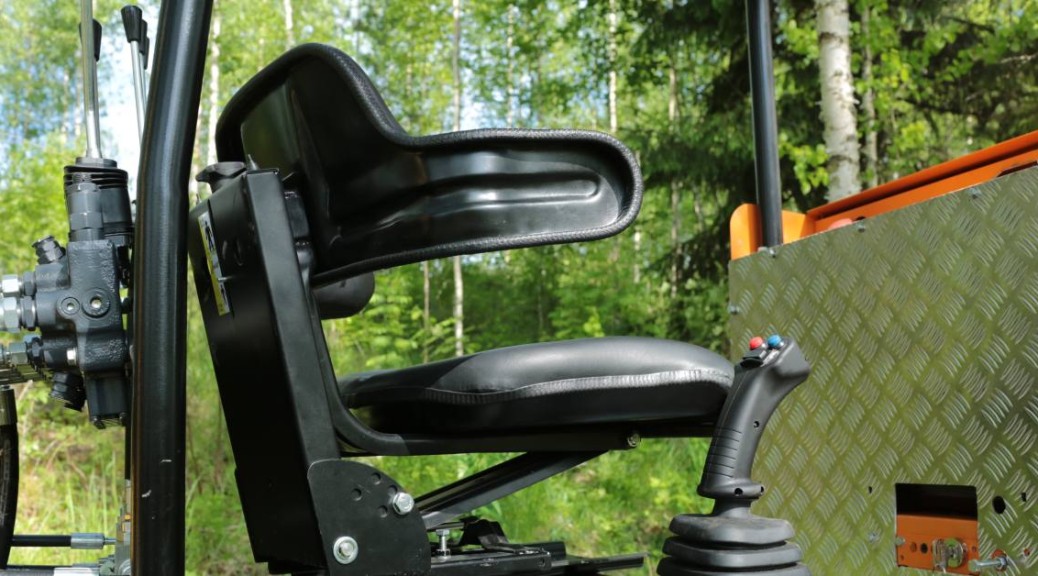

Logbullet is controlled by the handle on the side of the bench. The machine moves forward and backward by pushing or pulling the handle. The bench rotates 180 degrees for comfortable crane operation from a single seated position. No need to turn the machine around in tight forest spaces — operate in both directions from the same seat.
READ MORE →
Cost-effective
Logbullet's hydraulic and other components are standard components from well-known manufacturers. The availability of parts is good, now and in the future. Logbullet engine is a small diesel engine — having a good diesel engine keeps operating costs down. Logbullet uses hydrostatic drive system where hydraulic oil circulates between hydraulic pump and drive motors without visiting the hydraulic tank. This produces less waste heat than a traditional open circuit system. The machine is lightweight and reasonably sized — transporting between work sites takes place on a normal flatbed trailer.
READ MORE →TECHNICAL SPECIFICATIONS
LOGBULLET MINI FORESTRY FORWARDER — SPEC SHEET
| SPECIFICATION | VALUE |
|---|---|

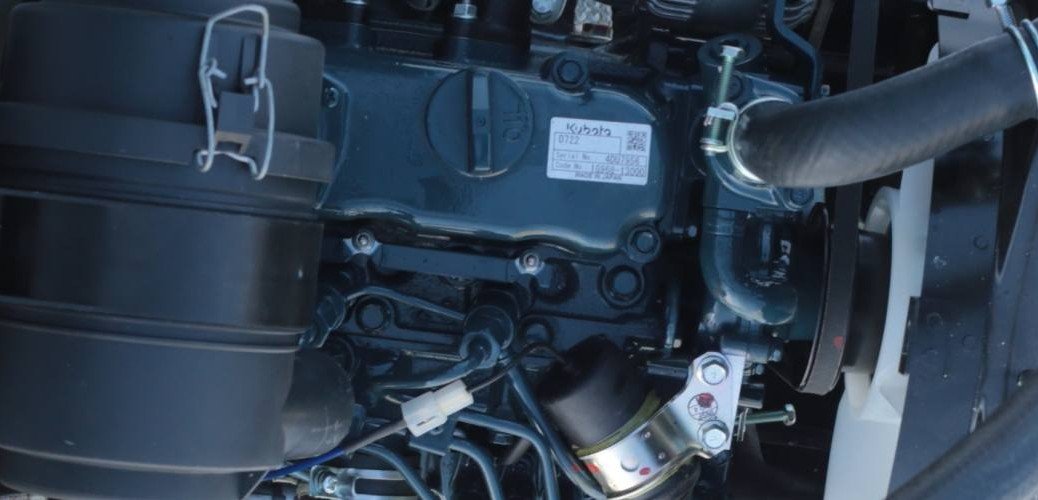

| Engine | Kubota V1505 diesel, 18.2 kW |
| Crane | Farma 3.8, lifting capacity 475 kg at 3.8 m |
| Drive | 8×8 hydrostatic |
| Length | 5000 mm (17 ft) |
| Width | 1500 mm (5 ft) |
| Height | 2160 mm (7 ft) |
| Weight | from 2000 kg (8×8 HD model) |
| Payload | 2400 kg |
| Driving speed | ~6 km/h |
| Ground clearance | 400 mm |
| Tires | — see manufacturer |
| Load area | 2.5 m, extendable to 5.5 m |
| Drive system | Hydrostatic, closed circuit |
| Hydraulic valve | Standard fully casted 2+4 valve |
| Price | €34,900 VAT 0% + transportation from Finland |
SEE IT WORK

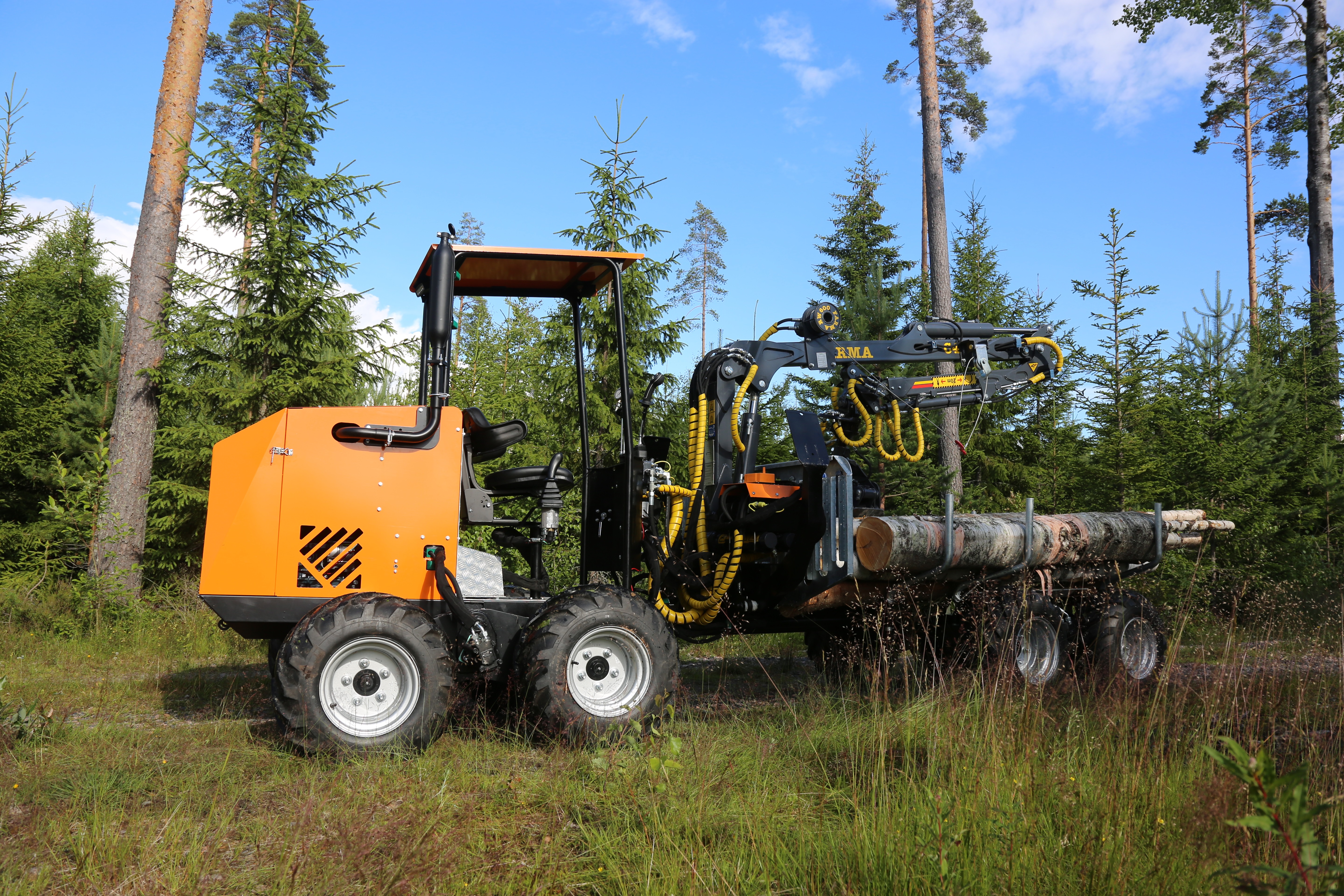

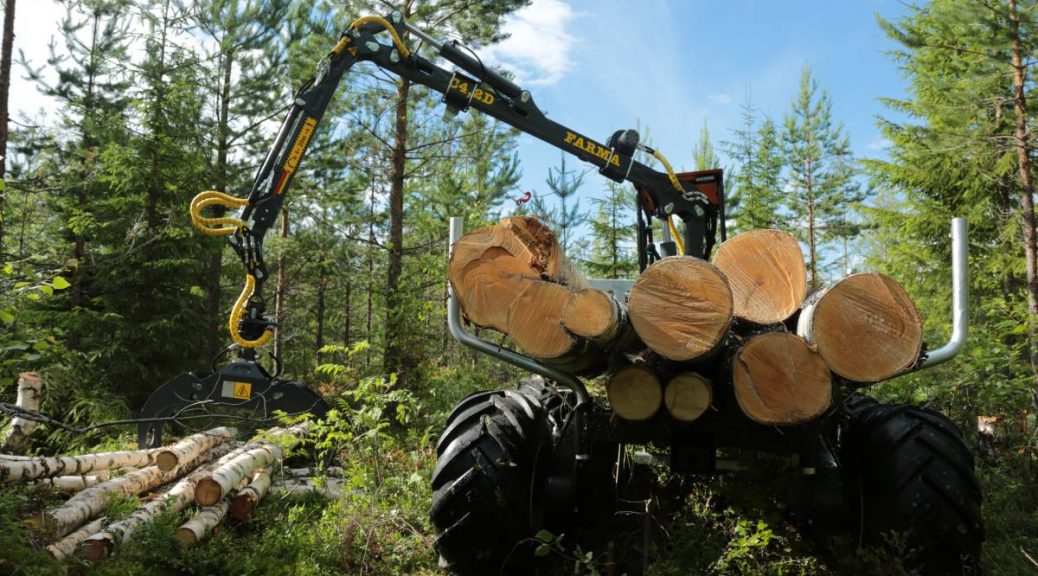

FIG. 01 — DRIVING A FULL LOAD WITH LOGBULLET, FINLAND
PEKKA SYVÄNEN / FOUNDER, DESIGNER, MACHINIST
THE MAN IN THE WORKSHOP
Pekka Syvänen holds a Master's degree in Mechanical Engineering from Helsinki University of Technology. Before building forwarders, he maintained Finland's most popular forestry blog — puuntuottaja.com — writing under the pseudonym "Paavo Woodproducer" since 2011. He identified a gap in the market: no machine existed that was small enough for private forest owners yet capable enough for real forwarding work. So he built one.
READ THE FULL STORY →CONTACT
This is a machine you buy by calling a person.
